1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories

Brand Name : JHL

Model Number : product feature

Certification : CCC

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/YEAR

Delivery Time : 30work days

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product name : Control Cabinet Accessories

Contact Now

Control 1, 2, 3 pump controller,Fire pump automatic inspection control equipment,Fire pump control equipment







Fire pump control equipment

Power supply: AC220V 50/60Hz


Rated power: 0.75 ~ 500kW

Rated current: 0.1 ~ 999A

Control mode: direct starting, star triangle starting, soft starting, autobuck starting

Display mode: LED digital tube, indicator light, Chinese characters

Display accuracy: 0.1/1A

Working mode: one use one standby

Protection function: power supply overvoltage, undervoltage, phase break, wrong phase, motor phase break, blocked rotation, overload, underload three-phase imbalance,

Circuit breaker failure, contactor failure, fire pool water shortage

Fault indication: Chinese display, sound and light alarm

Load type: water pump

Contact capacity: 250VAC 5A/10A (resistance)

Size: 290×210×56mm

Opening size: 272×192mm

Installation mode: panel type

Operating temperature: -10℃ ~ 45℃


Ambient humidity: 10 ~ 90%RH (non-condensing)



product feature

◇ Built-in switching power supply


◇ Built-in circuit breaker closing detection

◇ Built-in phase sequence protector

◇ Phase sequence detection positive sequence, reverse sequence, off optional

◇ Current sampling 0.1A~999A

◇ Increase frequency, three-phase voltage, current cycle display

◇ Programmable input and output terminals

◇ Increase overload alarm without stopping function

◇ 485 Communication function


◇ Standby pump failure stop



◇ Strong start linkage alarm can be set


◇ Water shortage protection stop


◇ Lower pressure audible alarm can be set

1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories

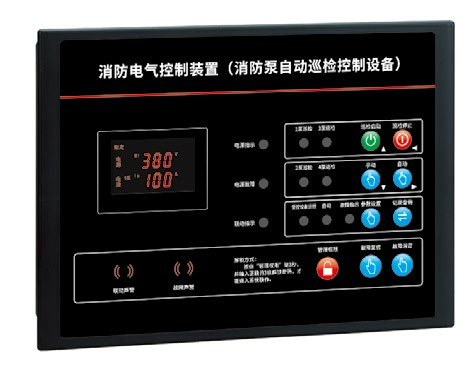

Fire pump automatic inspection control equipment



Power supply: AC220V 50/60Hz


Rated power: 0.75 ~ 500kW

Rated current: 0.1 ~ 999A

Display mode: LED digital tube, indicator light, Chinese characters

Display accuracy: 0.1/1A

Working mode: 4 pump inspection (AK400-S4XJ), 6 pump inspection (AK400-S6XJ)

Protection function: power supply overvoltage, undervoltage, phase break, wrong phase, motor phase break, blocked rotation, overload, undervoltage

Load, three-phase imbalance, inverter failure, contactor failure, fire pool water shortage

Fault indication: Chinese display, sound and light alarm

Load type: water pump

Contact capacity: 250VAC 5A/10A (resistance)

Size: 290×210×56mm

Opening size: 272×192mm

Installation mode: panel type

Operating temperature: -10℃ ~ 45℃

Ambient humidity: 10 ~ 90%RH (non-condensing)



product feature

◇ Built-in switching power supply


◇ Add fault silencing function

◇ Built-in phase sequence protector

◇ Phase sequence detection positive sequence, reverse sequence, off optional

◇ Current sampling 0.1A~999A

◇ Add fault reset button

◇ Increase frequency display

◇ Three-phase current and voltage cycle display

◇ Inspection record, fault record query

1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories

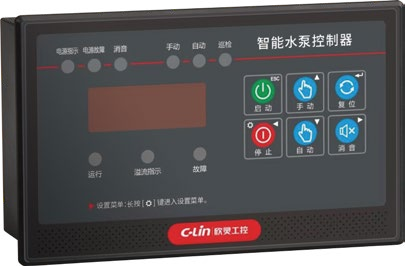

Control 1, 2, 3 pump controller



Power supply: AC220V 50/60Hz


Display mode: indicator

Working mode: Control 1, 2, 3

Protection function: heat relay fault feedback, overflow alarm

Fault indication: indicator light, fault alarm

Load type: water pump

Contact capacity: 250VAC 5A

Overall dimensions: 164×102×35mm

Hole size: 146×84mm

Installation mode: panel type

Operating temperature: -10℃ ~ 45℃

Ambient humidity: 10 ~ 90%RH (non-condensing





product feature

◇ Fault one-key reset


◇ Isolated switching power supply

◇ Power off memory

◇ Simple operation

◇ Water supply and drainage can be configured

◇ Automatic inspection

◇ Hand automatic feedback

◇ Ultra-high liquid level alarm

1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories

1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories

1 2 3 Pump Inspection Control Equipment 500kW 999A Control Cabinet Accessories
