1.2A 2.4A Electrical Protection Switch 63A Control Cabinet Accessories

  • 1
  • 2

Brand Name : JHL

Model Number : 0.6A、1.2A、2.4A、6A、12A、18A、32A、45A、63A

Certification : CCC

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/YEAR

Delivery Time : 30work days

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product name : Control Cabinet Accessories

Contact Now

Control and protection switch





Rated operating voltage: 400V, 690V



Power supply voltage: AC230V, AC400V



Frame current: 45A, 125A



Rated working current: 1A, 3A, 6A, 12A, 16A, 25A, 32A, 45A, 63A,



80A, 100A, 125A



Ambient temperature: Upper limit temperature: < 40℃; Lower limit temperature: > -5℃



Installation environment: the altitude is not more than 2000 meters, no moisture, no corrosive gas



Number of poles: 3P



Overload protection (delay) : distribution protection, motor protection



Breaking capacity: C: 15KA, Y: 35KA



Auxiliary contact: 06-3 Normally open 2 Normally closed +1 fault trip +1 fault alarm



Derived functions: F- fire, L- leakage, G- isolation, T- communication



Mounting method: Vertical mounting (screw mounting)



Overall dimensions: 45 3P: 202×78×140mm 125 3P: 245×104×180mm

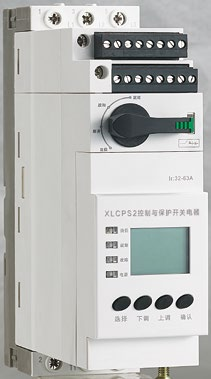

1.2A 2.4A Electrical Protection Switch 63A Control Cabinet Accessories

Rated operating voltage: 400V, 690V



Rated frequency: 50Hz



Power supply voltage: AC230V, AC400V



Frame current: 63A



Rated working current: 0.6A, 1.2A, 2.4A, 6A, 12A, 18A, 32A, 45A, 63A pole number: 3P



Breaking operation time: ≤2ms



Rated short circuit breaking capacity: 50kA (AC400V), 4kA (AC690V)



Rated impulse withstand voltage: 6kV



Usage Category: AC-43, AC-44



Electrical life: (AC-43) : 1 million times (400V)



Mechanical life: 10 million cycles



Installation method: vertical installation (screw installation, 35mm standard clamp rail installation)



Overall dimensions: 184×55×158mm



1.2A 2.4A Electrical Protection Switch 63A Control Cabinet Accessories
