800V Water Pump Star Triangle Starter Mechanical Emergency Force Start Control Cabinet Accessories

Name: 800V Water Pump Star Triangle Starter Mechanical Emergency Force Start Control Cabinet Accessories
Brand: Customized
Price: 1 USD

Buy cheap 800V Water Pump Star Triangle Starter Mechanical Emergency Force Start Control Cabinet Accessories product

Brand Name : Customized

Model Number : 132KW

Certification : CCC, ISO

Place of Origin : Chengdu, China

MOQ : 1 unit

Price : Pending

Payment Terms : T/T,D/A

Supply Ability : 5000PCS/YEAR

Delivery Time : 35 work days

Packaging Details : Wooden Case

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product name : Control Cabinet Accessories

Contact Now

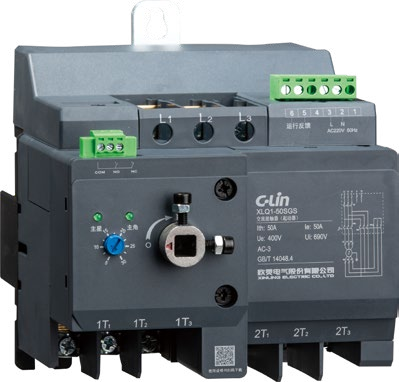

Water pump star triangle starter with mechanical emergency force start

key feature

Rated working current Ie: 40A, 50A

Rated working voltage Ue: 380V/400V

Rated insulation voltage Ui: 800V

Number of poles: 3P

Electrical life: 600 thousand cycles

Motor can run power: 0.75KW-30KW

Matching fuse: NH1-200 (A)

Dimensions: 130×149×134mm(length × width × height)

Installation size:

Rated control voltage Us: AC110V/127V, 220V/230V, 380V/400V

Suction voltage: Control voltage Us (80%-110%)

Release voltage: Control voltage Us (20%-75%)

Coil draw: 230 (VA)

Temperature range: -5℃ ~40℃

800V Water Pump Star Triangle Starter Mechanical Emergency Force Start Control Cabinet Accessories
