AC 50Hz 630A 800A Plastic Case Circuit Breaker Leakage MCCB Circuit Breaker

Brand Name : JHL

Model Number : 400A、630A、800A、1250A、1600A、2000A、2500A、2900A、3200A 、3600A、4000A

Certification : CCC

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/YEAR

Delivery Time : 30work days

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product Name : Power Distribution Equipment

Contact Now

Plastic-case circuit breaker system,Plastic-case leakage circuit breaker

Plastic-case circuit breaker system

CM1(CM1) series plastic-case circuit breaker is suitable for AC 50Hz, rated insulation voltage 690V(type 63 is 500V), rated working voltage 400V, W

In a distribution network circuit with a fixed working current of 16A to 800A, it is used to distribute electrical energy and protect lines and power supplies from overload, short circuit, undervoltage and other faults

The damage. At the same time, it can also be used as the motor's infrequent start and overload, short circuit, undervoltage protection.

Products comply with: GB/T14048.2 standard.

technical specification

Rated operating voltage AC400V

Rated insulation voltage 690V (500V for type 63)

Chassis grades 63A, 125A, 250A, 400A, 630A, 800A

Rated current 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A,

250A, 315A, 350A, 400A, 500A, 630A, 800A

Overload protection (delay) distribution protection, motor protection

Rated limit short-circuit breaking capacity level L(standard type); M(higher fracture type)

Installation mode Vertical or horizontal

Wiring mode Front wiring, back wiring, insert type

Pole number 3P, 4P

Pollution level 3

Installation Category III

Protection class IP20

Ambient temperature Upper limit temperature: +40℃; Lower limit temperature: -5℃

The altitude does not exceed 2000 meters

AC 50Hz 630A 800A Plastic Case Circuit Breaker Leakage MCCB Circuit Breaker

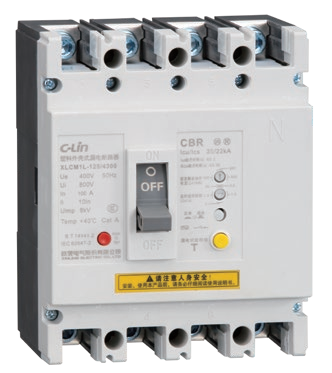

Plastic-case leakage circuit breaker

CM1L series leakage circuit breaker is suitable for AC 50Hz, rated working voltage to 400V, rated working current 16A to 800A

It is used for leakage protection in the power supply system with direct grounding of the source neutral point, and can also be used to prevent the grounding fault current caused by equipment insulation damage

Caused by fire hazard. And can be used to distribute power and protect lines and power equipment from overload, short circuit and other faults damage, can also be used as a motor

Infrequent start and overload, short circuit protection.

Products comply with: GB/T14048.2 standard.

technical specification

Rated operating voltage AC400V

Frame grade 125A, 250A, 400A, 630A, 800A

Rated current 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A,

250A, 315A, 350A, 400A, 500A, 630A, 800A

Leakage current 30mA, 50mA, 100mA, 200mA, 300mA, 500mA, 1000mA

Overload protection (delay) distribution protection, motor protection

Rated limit short-circuit breaking capacity level L(standard type); M(higher fracture type)

Installation mode Vertical or horizontal

Wiring mode Front wiring, back wiring, insert type

The polar numbers 3P, 4P, 3P+N

Pollution Level 3

Installation Category III

Protection class IP20

Ambient temperature Upper limit temperature: +40℃; Lower limit temperature: -5℃

The altitude does not exceed 2000 meters
